Replacement sensor probe and ignitor used for some Amana, Estate, Ikea, Maytag, Roper, and Whirlpool oven models.
Directly Replaces: WPW10181986 W10181986, W10131826, WPW10181986VP, 8273902, 1394200, AP6016450, EAP11749737, PD00003022, PS11749737, W10918546, WPW10140611, W10140611, W10918546VP, 98005652, 4454963, AP6037202, EAP11770066, PD00031392, PS11770066, 3186491, WP3186491, 503012, AP6007756, EAP11740875, PD00003723, PS11740875.
Features:
- Probe senses and sends the oven temp reading to the control board; Ignitor draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.

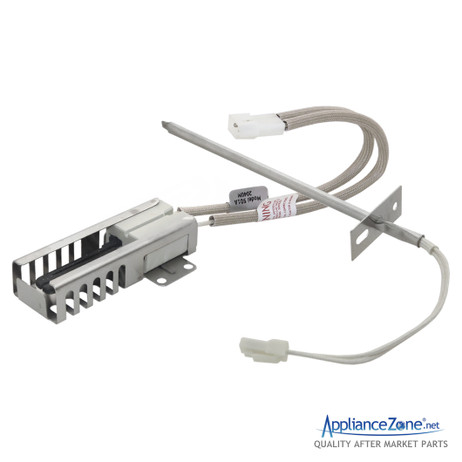

- Includes (1) Sensor Probe and 2-Wire Harness Assembly, (1) Igniter with Bracket and Lead/Plug.
APNW10181986 Probe Specifications:
- Material: Metal.
- Electrical Specs: 1000 Ohm.
- Probe Dimensions: 7"L x 1-3/4"W x 3/4"H.
- Additional Dimensions: Harness and Plug measure 5"L.
APNW10918546 Ignitor Specifications:
- Material: Metal / Ceramic / Plastic.
- Electrical Specs: 3.4 - 3.6A.
- Dimensions: 3-3/4"L x 1-3/4"W x 13/16"H (Cage / Bracket); Block measures 1-1/2"L.
- Additional Dimensions: Harness and plug extend approx. 10"L.
