Replacement burner receptacle used for some GE, Hotpoint, and Kenmore range models.
Directly Replaces: WB2X8228, WB02X8228, WB62X5358, WB62X5393, WB62X5394, WB62X5397, WB62X5401, WB62X5405, RR228, 250535, AH242972, AP2013499, EA242972, EAP242972, PD00001235, PS242972.
Features:
- Socket that the burner elements plug in to connect your burner to the cooktop.
- Bakelite range block.
- Mounting bracket has a metal tab bent at 180 degrees.

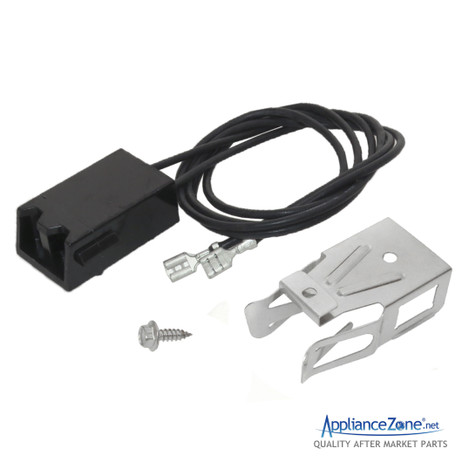

- Includes (1) Range Block with Leads, (1) Mounting Clip, (1) Installation Screw.
Specifications:
- Color: Black.
- Material: Plastic / Metal.
- Block Dimensions: 1-7/8"L x 1-3/8"W x 3/4"H.
- Additional Dimensions: Leads extend 24-3/4" from range block.
