Replacement W10006355 W10721967 Washer Shift Actuator & Cam Kit for Whirlpool / Maytag

(No reviews yet) Write a Review
Sku:  APNW10006355-1967_KIT
Condition:  New

$94.58
$40.50
(You save $54.08 )

Replacement pulley, cam and shift actuator kit used for some Kenmore, Maytag, and Whirlpool washer models.

Directly Replaces: WPW10006355, W10006355, WPW10006355VP, W11198451, W11047472, 1719787, AP6014711, EAP11747977, PD00003701, PS11747977, 49TYZ-110, 49TYZ-E120A, KT-155052, KIT-155052.1_rev012, emz-Nr.: EG-330033, KT-157423, W10721967, W10315818, W10006356, W10006352, W10006353, W10006354, W10006382, W10326374, W10536113, W10239973, W10818965, W11396423, W10721967VP, B00H3G7FR0, B00DM8LT2U, B00TYZYINC, B008DJM5CQ, B0156NFAGO, B00DZU8JPU, B008DJSB8I, B00TYZYHN8, B008DJM9JU, B008DJM4W2, B008DJM5X0, B00TYZYJSQ, LP1967, 3319979, AP5951296, EAP10057144, PD00005593, PS10057144.

Features:

  • Work together to operate the washplate and spin the inner basket
  • Shift actuator with reverse plug.
  • Typically used on top-loading commercial washers.
  • Includes (1) Mode Shift Actuator with Adapter Plug and Housing. (1) Drive Pulley, (1) Basket Drive Gear, (1) Splutch Housing, (1) Cam Ring, (1) Spring, (1) Nut.

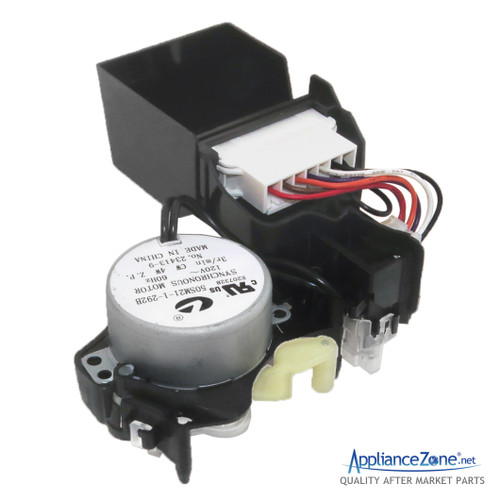

APNW10006355 Shift Actuator Specifications:

  • Color: White / Black / Gray with Multi-colored harness.
  • Material: Plastic / Metal.
  • Finish: Glossy.
  • Electrical Specs: Synchronous motor, 120V, 60Hz, 4W, 3 rotations/min, CW rotation.
  • Dimensions: 5"L x 4-3/4"W x 2-3/4"H.

*Note - This part has been redesigned by the manufacturer and now comes with an adapter wire harness. Additionally, the part now comes in a black housing instead of the original red housing.

APNW10721967 Pulley & Cam Kit Specifications:

  • Color: White / Gray.
  • Material: Plastic / Metal.
  • Pulley Dimensions: 4-3/8"L x 4-3/8"W x 1-3/16"H.
  • Additional Dimensions: Drive gear measures 3-1/16" diameter x 1-9/16"H; Splutch housing measures 3-3/8" diameter x 1 3/16"H.
  • View Instructions.
