Replacement ice maker used for some Criterion, Insignia, and Midea refrigerator models.
Directly Replaces: IM1800, IM1800MD, 12131000A13204, 12131000022901, AP7618076, 4993618.
Features:
- "Add-On" ice maker kit.
- Spark proof ice maker is safe to use with R-600 refrigerant.
- Single solenoid inlet valve with installation bracket and guard.
- Universal fill cup with punch-out adapter holes.

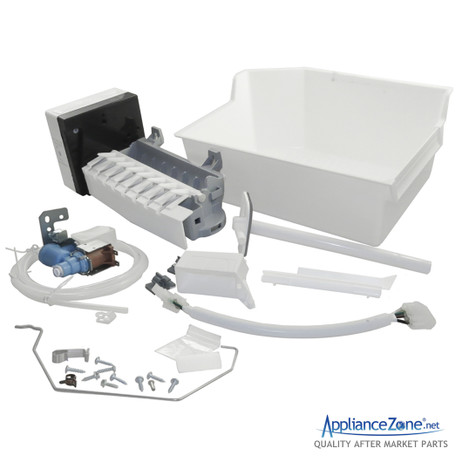

- Includes (1) 8-Cube Icemaker, (1) Ice Bucket, (1) On/Off Arm, (1) Fill Cup, (1) Fill Tube, (1) Wire Harness, (1) Water Line, (1) Water Valve, Mounting Hardware, Installation Instructions.
Specifications:
- Color: White / Black / Gray.
- Material: Metal / Plastic.
- Finish: Glossy.
- Ice Maker Overall Dimensions: 11-3/8"L x 4-1/2"W x 5-1/2"H; Attached 4-Wire Harness extends 4-3/8" from Ice Maker.
- Water Valve Dimensions: 4"L x 2-3/4"W x 3-3/4"H.
- Water Line Dimensions: 1/4" Outer Diameter x 1/8" Inner Diameter x 82-1/2"L.
- Adapter Harness Dimensions: 10-3/4"L.
- Bail Arm Dimensions: 9-3/8"L x 4"H.
- Ice Bucket Dimensions: 12-1/4"L x 8-3/4"W x 5-1/2"H.
- View Instructions
