Replacement ice maker and water inlet valve used for some Samsung refrigerator models.
Directly Replaces: DA97-07365G, DA97-07362A, DA97-07365A, RIM7365G, WR30X10131, 2754555, 2754504, AP4450508, AP5651749, AP4513392, EAP2562832, EAP2577893, PD00001999, PD00001315, PS2562832, PS5575307, PS2577893, DA97-07827B, DA62-02219A, DA62-02291B, DA97-07827E, 2010995, AP4511357, EAP4175482, PD00002059, PS4175482.
Features:

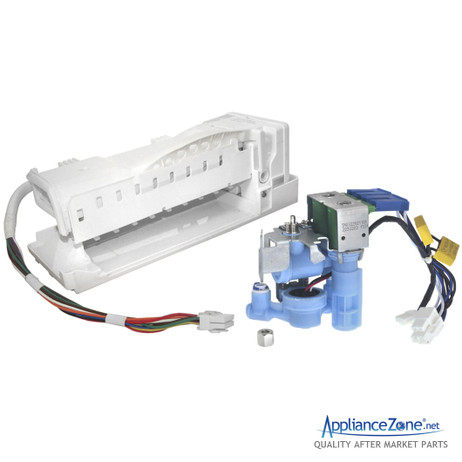

- Ice maker and water inlet valve kit.
- Water valve ice maker water line port has male line connection and water line nut.
- Includes (1) 9-Cube Ice Maker with Harness and Plug Assembly, (1) water inlet Assembly with Bracket and Wire Harness.

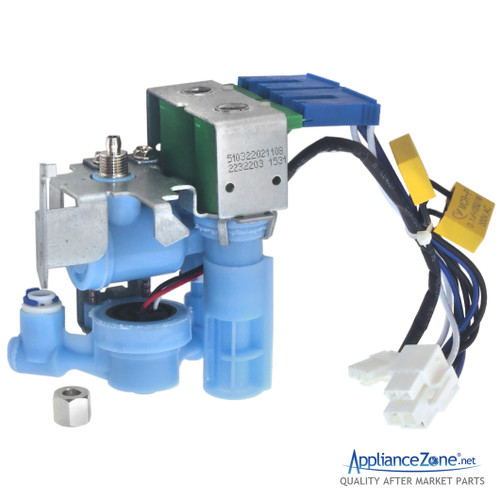

APNDA97-07827B Water Valve Specifications:
- Color: Blue / Green / Black / White.
- Material: Plastic / Metal.
- Electrical Specs: 120V, 50-60Hz, 20W.
- Dimensions: 4-1/4"L x 3"W x 4"H.
- Additional Dimensions: Harness measures approx. 7-1/2"L.
APNDA97-07365G Ice Maker Specifications:
- Color: White with multi-colored harness.
- Material: Plastic / Metal.
- Finish: Glossy.
- Electrical Specs: 115VAC, 60Hz, 145W
- Dimensions: 13-3/8"L x 4-5/16"W x 4-1/8"H.
- Additional Dimensions: Harness and plug measure approx. 22-3/4"L.
*Due to Samsung using different ice makers depending on the build date of certain model refrigerators, you must look at the blue tag on the bottom of your ice maker and read the part number starting with DA97-XXXXXX off of that tag to ensure you are ordering the correct ice maker.
Type your model number into the box to filter down the compatible models. How do I find my model number?
Don't see your model listed? Complete this form for help with finding the right part.
