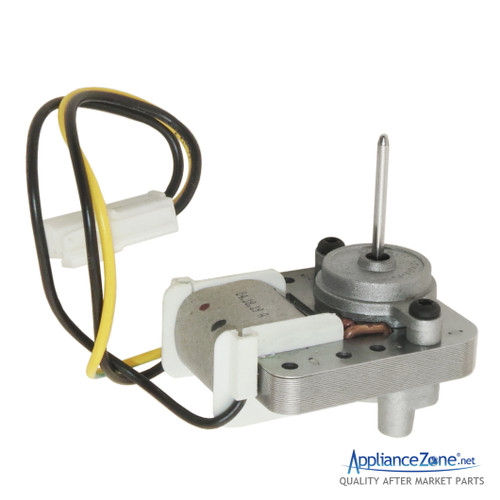

Replacement evaporator fan motor used for some Samsung refrigerator models.
Directly Replaces: DA31-00334C, DA31-00287B, DA96-00968A, DA31-00305A, 4976115, AP6803162, EAP12590897, PD00075168, PS12590897.
Features:
- Pulls air through the evaporator coils to remove heat from the circulating air within the unit.
- Typically used on bottom mount units.
- Includes (1) Evap Fan & Motor Assembly with 3-Wire Harness.
Specifications:
- Color: Black with Black/Red/White Harness.
- Material: Plastic / Metal.
- Electrical Specs: 12VDC, 0.26A.
- Overall Dimensions: 4-7/8"L x 1-5/16"W x 4-5/8"H.
- Additional Dimensions: Harness extends 26" from fan assembly. Fan Blade is 4-3/4" diameter.
Type your model number into the box to filter down the compatible models. How do I find my model number?
Don't see your model listed? Complete this form for help with finding the right part.
