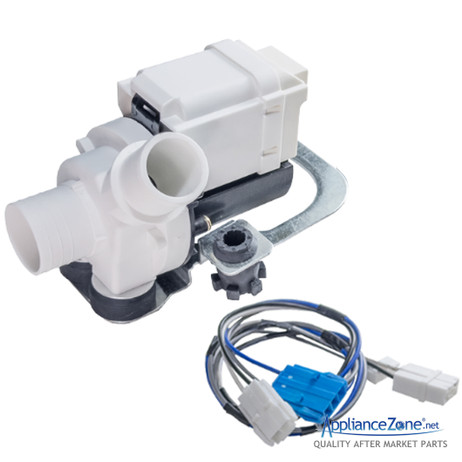

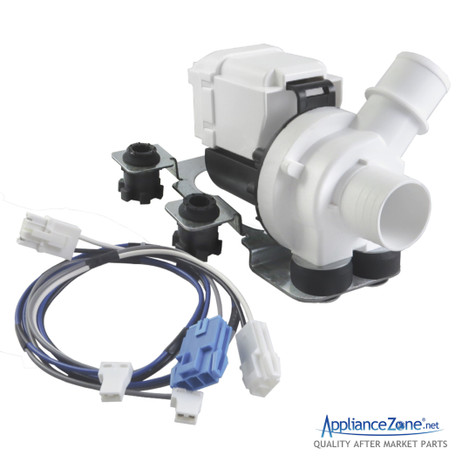

Replacement drain pump & motor assembly used for some LG and Kenmore washer models.
Directly Replaces: 5859EA1004P, 5859EA1004F, 5859EA1004G, 5859EA1004R, 5859EA1004Q, 4115379, AHA74333301, AHA74333302, ALG52610, AP5973335, EAP11706439, PD00053595, PS11706439.
Features:
- Pumps water and soap out of the washer.
- Includes (1) Pump and Motor Assembly with Mounting Bracket/Grommets and Wire-Harness.
Specifications:
- Color: White / Black Pump; Blue / Black / White / Gray Harness.
- Material: Plastic / Rubber / Metal.
- Run Time: 15min ON / 45min OFF.
- Electrical Specs: 120V, 60 Hz, 80W.
- Pump Dimensions: 6-1/2"L x 5-1/4"W x 4-1/2"H.
- Additional Dimensions: 36"L Harness Assembly.
NOTE: Do not remove harness from packaging prior to installation. Using the wiring is a sign of installation and we are not able to accept returns on pumps that have had their wiring installed.
