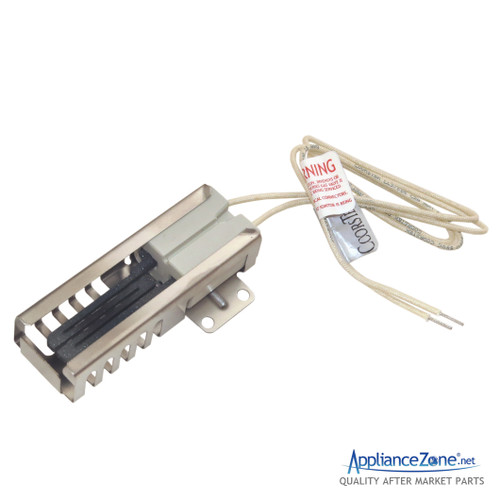

Replacement ignitor used for some Danby, Frigidaire, GE, Hotpoint, Kenmore, KitchenAid, Maytag, Roper, Tappan, and Whirlpool oven and range models.
Directly Replaces: 5303935066, 08009420, 08013883, 08067971, 10064, 10222, 3131090, 3131300, 316030600, 316T031P01, 316T031P02, 3203706, 41-204, 5303131300, 5303207520, 5303207521, 5303210788, 5303937521, 5308009420, 54099H05, 8009420, AP00205013, AP205013, AP205016, F16-747, F17-038, F17-039, IGN-4, IGN-5, IGN-8, IGN5, P205013, P205016, P205034, AR5066, 501A, 814269, 4163781, 4320913, 4337848, 4371216, 4372474, 816625, 816826, 816928, 12400035, 14200118, 1482-224, 1482-225, 1482224, 1482225, 41-205, 41-207, 5-50735, 5-51003, 5-51207, 5-51291, 54099H05, 550735, 551003, 551207, 551291, 7-90023, 7-90401, 7432P025-60, 7432P025-60K, 7432P026-60, 7432P051-50K, 7432P051-60, 7432P051-60K, 7432P052-60, 7432P052-60K, 7432P062-60, 7432P064-60, 7432P066-60, 7432P067-60, 7432P076-60, 790023, 790401, F17-036, GR407, GR409, IGN5, IGN6, P205-013, P205-016, P205-017, P205-034, P205-036, TJERIG35, W10125528, W10127324, A3377, P4012072, WB2X10016, WB02X10016, WB2X9998, WB02X4528, WB02X4600, WB02X8212, WB02X9998, WB2X4528, WB2X4600, WB2X8212, GR411, GR412, 12872, 875554, 1255, 3377, 1704, EAP241804, PD00042950, AH241804, AH470129, AH389156, AH243820, AH1573892, AP205016, AP2634719, AP3119495, AP2150412, AP4012072, AP2009619, EA241804, EA1573892, EA470129, EA389156, EA243820, EAP243820, EAP389156, EAP470129, EAP1573892, EAP241804, PD00042950, PD00002480, PD00000105, PD00003121, PD00001000, PS389156, PS470129, PS1573892, PS241804, PS243820.
Features:
- Flat style, ceramic igniter with mounting bracket.
- Draws electrical current through the oven safety valve to open it, then ignites gas burners to heat the oven to temperature.
- Replaces any flat oven igniter with a 3.2 to 3.6 amperage draw (excluding blue ceramic igniters).
- Includes (1) Ignitor with Bracket and 2-Wire Lead, (2) wire connectors.
Specifications:
- Material: Metal / Ceramic.
- Amperage Range: 3.2 to 3.6.
- Ignitor Dimensions: 3-3/4"L x 1-3/4"W x 13/16"H (Cage/Bracket); Ceramic Block measures 1-1/2"L.
- Additional Dimensions: 2-wire bare leads measure 17-1/2"L.
