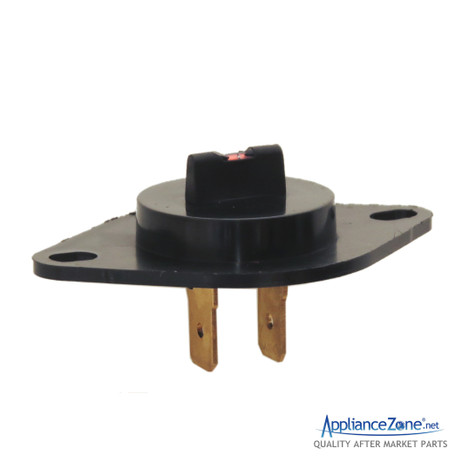

Replacement thermistor used for some Kenmore, Maytag, and Samsung dryer models.
Directly Replaces: DC32-00007A, 35001191, DE0007A, N3S1-K41, N3SI-K41, 1185513, 2068429, AH2038482, AP4201716, AP4045224, AP6008688, EA2038482, EAP2461163, PD00001996, PS2461163, PS4204984, PS2038482, PS11741828.
Features:
- Heat sensor that monitors the air temperature inside the drum.
- 10K Ohms @ 77° F.
- Includes (1) Thermistor.
Specifications:
- Color: Black.
- Material: Metal / Plastic.
- Overall Dimensions: 2"L x 1"W x 1-7/8"H.
- Additional Dimensions: 5/8" between mounting holes (center to center).
Testing tip: Thermistors do not have continuity, they show resistance. Therefore, to test it you need a multimeter that measures ohms. With the power disconnected from the dryer, connect the multimeter to the thermistor. Then use a hair dryer to blow hot air over the thermistor. As the thermistor becomes hotter, its resistance should decrease. If the resistance doesn't change when the temperature changes, then thermistor should be replaced.
Type your model number into the box to filter down the compatible models. How do I find my model number?
Don't see your model listed? Complete this form for help with finding the right part.
1 Review
-
Great replacement!
Saved $200 doing the work myself! Took about 40 minutes and solved tO fault code.
