Replacement ice maker and water valve set used for some Electrolux and Frigidaire refrigerator models.
Directly Replaces: 5303918493, 241798219, RIM8493, 1794546, AH3409466, AP4587866, EA3409466, EAP3409466, PD00000488, PS3409466, 242253002, 242102201, WV3002, 2689640, AP5669874, EAP7321353, PD00007279, PS7321353.
Features:
- Water valve controls the flow of water to the ice maker and water dispenser; Ice maker creates ice cubes to be stored in the ice bin.
- Ice maker with heated mold with female pin connectors.
- Water valve uses (5) outlets.

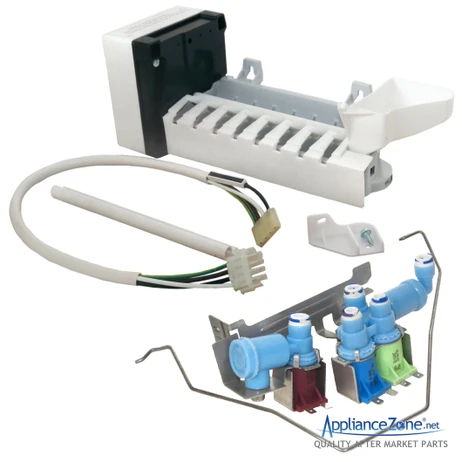

- Includes (1) 8-Cube Ice Maker, (1) 4-Wire Harness, (1) Bail Arm, (1) Freezer Basket Trim/Guard, Installation Hardware, (1) 4-Solenoid Water Valve with Bracket.
APN5303918493 Ice Maker Specifications:
- Color: White / Black / Gray.
- Material: Plastic / Metal.
- Finish: Glossy.
- Electrical Specs: 115V, 60Hz, 185W, 1.6A.
- Dimensions: 13"L x 4-5/8"W x 4-3/4"H.
- Additional Dimensions: Overall4-Wire harness and plug measure 26"L; Basket trim measures 8-1/8"L.
APN242253002 Water Valve Specifications:
- Color: Gray / Blue / Green / White / Maroon / Almond.
- Material: Plastic / Metal.
- Electrical Specs: 120V (each), 50/60Hz (each), 20W (Maroon & Almond), 35W (Blue & Green).
- Dimensions: 7-3/4"L x 3-3/8"W x 3-1/4"H .
- Additional Dimensions: (2) 1/4" tube outlets, (3) 5/16" tube outlets.
