Replacement 134550800 131763202 Washer Latch & Hinge for Frigidaire / Crosley

(3 reviews) Write a Review
Sku:  APN131763202-0800_KIT
Condition:  New

(You save $46.02 )

Replacement door locking switch, strike, and hinge kit used for some Crosley, Electrolux, Frigidaire, and Kenmore washer models.

Directly Replaces: 131763202, 131763256, 131763255, 1312694, 131269400, 131763200, 131763245, 3626240, PA66-GF25, 08003223, 5301317632, K001317632, K1317630-K938, K1317632, WH10X27534 WH10X10003, WH10X10007, WH10X27194, LP3202, 4547432, 4547033, AH2367737, AH3418879, AP6327625, AP4455026, AP4694680, AP6285657, EA3418879, EAP2367737, PD00038657, PD00070219, PS12343346, PS2367737, PS3418879, PS12364048, 134550800, 1191162, AH1152380, AP3886714, EA1152380, EAP1152380, PD00000356, PS1152380, 131763310, 134456600, 1032664, 131763300, LP3310, AP3580441, AH890617, EA890617, PD00000164, PS890617, B00DM8K1UG.


  • Switch and strike work together to keep the door closed while the unit is in use; Hinge allows door to swing open.
  • Used on front loading washers.
  • Switch as 8 terminals.
  • Hinge base with swivel bushings.

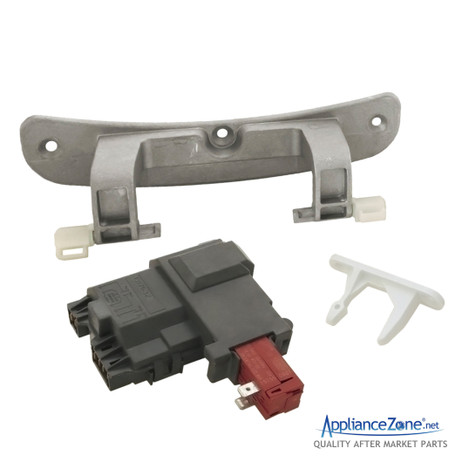

  • Includes (1) Front Loading Door Lock and Switch Assembly, (1) Door Strike, (1) Door Hinge Base.

APN131763202 Door Lock/Latch Specifications:

  • Color: Gray / Red.
  • Material: Plastic / Metal.
  • Finish: Matte.
  • Electrical Specs: 120VAC, 50/60Hz.
  • Dimensions: 4-1/2"L x 3-7/8"W x 1-1/2"H.

APN134550800 Hinge Specifications:

  • Color: Gray.
  • Material: Metal / Plastic.
  • Dimensions: 2-3/4"L x 1-15/16"W x 8-1/4"H.
  • Additional Dimensions: Approx. 3 1/2" between mounting holes (center to center).

APN131763310 Door Strike Specifications:

  • Color: White.
  • Material: Plastic.
  • Finish: Matte.
  • Dimensions: 1-1/4"L x 9/16"W x 2-9/16"H.
  • Additional Dimensions: Approx. 2" between mounting holes (center to center).
