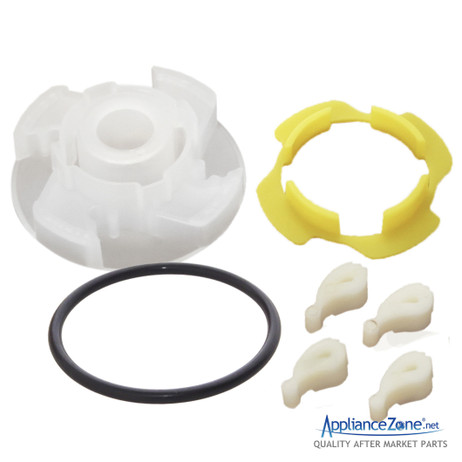

Replacement cam repair kit and o'ring used for some Amana, Crosley, Estate, Inglis, Kenmore, Maytag and Whirlpool washer models.
Directly Replaces: 285809, 285809VP, 3951650, 3951682, 470910, AH334648, AP3094543, EA334648, EAP334648, PD00003004, PS334648, WPW10072840, W10072840, 3348855, 3348855D, 64001, W10072840D, 1194897, AH1490170, AP6014838, AP3952940, EA1490170, EAP1490170, PD00004816, PS1490170, PS11748108.
Features:
- Cam kit repairs the agitator cam, which controls what direction the top section of a dual action agitator moves in.
- O'ring provides water barrier for the agitator cap.
- Used on direct drive washers with dual agitation.
- Short style cam included.
- It's recommended to use a small amount of grease on the top of the thrust washer if no grease is present on the old thrust washer.
- Includes (1) Short Style Agitator Cam, (1) Cam Bearing, (4) Agitator Dogs, (1) Instruction Sheet, (1) O-ring.
APN285809 Cam Repair Kit Specifications:
- Material: Plastic.
- Cam Dimensions: 2-3/4" Diameter x 1-1/4"H.
- Agitator Dog Dimensions: 7/8"L x 7/16"W x 3/8"H (each).
- Bearing Dimensions: 2-5/16" outermost diameter x 3/8"H; 1-9/16" inner diameter.
- View Instructions.
APNW10072840 O'Ring Specifications:
- Color: Black.
- Material: Rubber.
- Dimensions: 1-1/4" Diameter x 3/16"W.
Type your model number into the box to filter down the compatible models. How do I find my model number?
Don't see your model listed? Complete this form for help with finding the right part.
